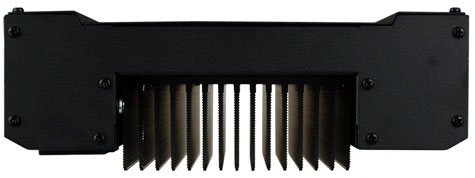

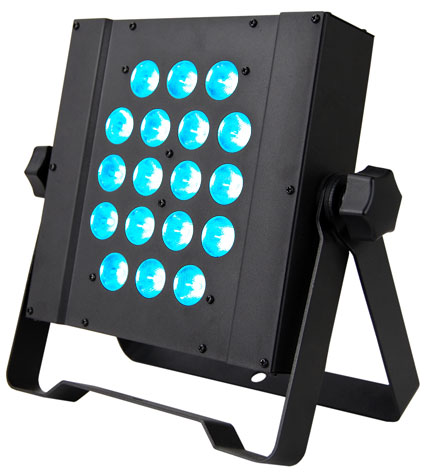

The Lumicraft LumiSPOT-18/3 is a RGB Highpower LED fixture which sports a LED panel with 18 RGB 3-in-1 TriLEDs and does not only offer impressive brightness, but also the most coherent color mixing. By exposing the rear heatsink of the LED panel directly to a vertical convection stream of air, this fixture does not need fan-forced cooling, and accommodating the electronics in two compartments left and right of the heatsink maintains an ultra-slim profile which reduces transportation space to only about 30% of a PAR-shaped fixture. The ease-of-use and the connection panel with AC In- and Outputs make this unit convincingly different from other Highpower LED fixtures.


  • LED panel with 18pcs. of ultra-bright 3x1W High-Power TriLEDs
  • Precision PMMA lenses with 25° dispersion angle (40° optional – only on order)
  • Total luminous output (all colors full level) 2550lm with factory-calibrated white balance
  • Silent convection cooling system (no fan)
  • Wide-range switch mode power supply and CDA™** current drive array for LED panel
  • IEC C14 input with detachable power cord plus IEC C13 power output
  • Convenient color-preset mode with 13 useful preset colors
  • Sound-to-Light Mode with ten internal patterns
  • Auto-Mode with 10 internal color change patterns in 3 speeds (fade, slow fade, switch, strobe)
  • 4-channel DMX mode (RGB brightness, dimmer/strobe) with adjustable start channel
  • 5-channel DMX mode optional (RGB brightness, dimmer, strobe – only on order)
  • DMX slave mode to easily connect several units to be controlled by the first unit in the chain
  • Blue 7-segment display (automatic display-off mode after 30 seconds)
  • All-metal body with sturdy black powder coating

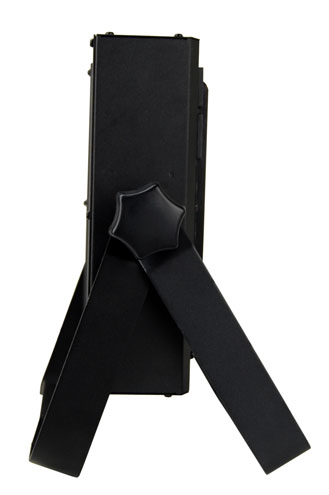

  • Dual bracket with hook mounting recess for hanging and standing operation




  • Type: 3x1W RGB TriLED
  • Quantity: 18 pcs.
  • Distribution: 18 red – 18 green – 18 blue
  • Luminous output: 2550 lm total
  • Optics: Optical PMMA, 25° (40° optional)

Power Supply

  • Input: 90-250V~ 50/60Hz
  • Power Consumption: max. 60W

Control Electronics

  • Dim Modulation: PWM
  • DMX Control: 4-Channel (5-Channel optional)


  • Dimension: H273x W288x D73 mm (with bracket), H210x W210x D73 mm (without bracket)
    Weight: 3.1 kg net



The LumiSpot-18/3 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • 5-channel DMX scheme with separate strobe and dimmer channels
  • 40° lens dispersion angle
  • Rear Panel user interface printing
  • Packaging artwork
