LumiPAR-39/1
The Lumicraft LumiPAR-39/1 is a RGB Highpower-LED fixture, probably the only one of its kind specifically designed for noise-sensitive environments where fan-cooling is not acceptable. Ease-of-use, the innovative connection panel and the excellent luminous output stand out from other Highpower-LED PAR-shaped fixtures.
- LED panel with 39pcs. of ultra-bright 1W High-Power LEDs: 9x red, 18x green, 12x blue
- Precision PMMA lenses with 15° dispersion angle in FOCENT™** Ring (30° lenses optional)
- Total luminous output (all colors full level) 1830lm with factory-calibrated white balance
- Completly noise-free, fanless convection cooling system
- Wide-range switch mode power supply and CDA™** current drive array for LED panel
- IEC C14 input with detachable power cord plus IEC C13 power output
- Patented angled connection panel* for ultimate connection ease and compact shape
- Convenient color-preset mode with 13 useful preset colors
- Auto-Mode with 10 internal color change patterns in 3 speeds (fade, slow fade, switch, strobe)
- Sound-to-light-Mode with 10 internal color sequences
- 4-channel DMX mode (RGB brightness, dimmer/strobe) with adjustable start channel
- 5-channel DMX mode optional (RGB brightness, dimmer, strobe – only on order)Â
- DMX slave mode to easily connect several units to be controlled by the first unit in the chain
- Blue 7-segment display (automatic display-off mode after 30 seconds)
- Aluminum body, natural polished or black painted surface
- Dual aluminium bracket with hook mounting recess for hanging and standing operation
* Protected by China design patent 200930081836.9, China utility patent 200920059834.4, Europe community design 001551508, US design patent pending, US utility patent pending
LEDs
- Type: P3 compatible 1W
- Quantity: 39 pcs.
- Distribution: 9 red – 18 green – 12 blue
- Luminous output: 1830 lm total
- Optics: Optical PMMA, 15° (30° optional)
Power Supply
- Input: 90-250V~ 50/60Hz
- Power Consumption: max. 45W
Control Electronics
- Dim Modulation: PWM
- DMX Control: 4-Channel (5-Channel optional)
General
- Dimension: D195(edge)/D186Â (tubus) x L252mm
- Weight: 2.2 kg net
The LumiPAR39-1 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):
- 5-channel DMX scheme with separate strobe and dimmer channels
- 15° or 30° LED dispersion angle
- Rear Panel user interface printing
- Packaging artwork
$downloadids = get_post_meta($post->ID, 'download');
if (!empty($downloadids[0])) echo " " . __('Downloads') . "";
echo download_shortcode(array('id'=>$downloadids[0]));
?>
|
Front view (click to enlarge)

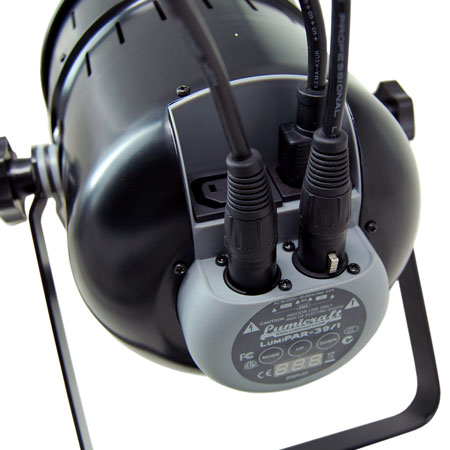

Connections (click to enlarge)

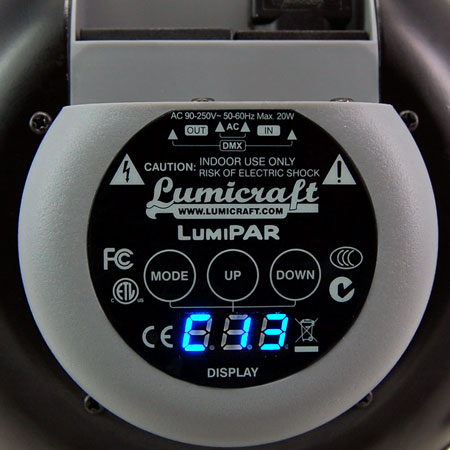

user interface (click to enlarge)

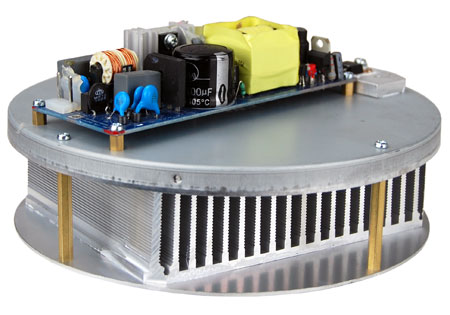

Heatsink & PSU (click to enlarge)
|
