LumiFlood-558/10

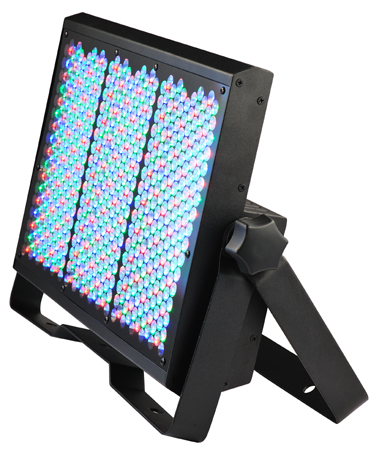

The LumiFlood-558/10 triple flood light is the most compact light show out-of-the-box that money can buy! The large LED panel can be split into 3 individually controlled segments, allowing this unit to act like 3 spotlights in one cabinet. Alternatively, all three panel segments can be combined to form one large bright washlight. One for all!

FEATURES

  • LED panel with 558pcs. of ultra-bright 10mm 0.06W LEDs (153xRed, 261xGreen, 144xBlue)
  • Panel divided in 3 individually controlled sections of 186 LEDs (51xRed, 87xGreen, 48xBlue)
  • Dispersion angle 30 degrees (20 or 40 degrees optional – only on order)
  • Total luminous output 970lm with factory-calibrated white balance

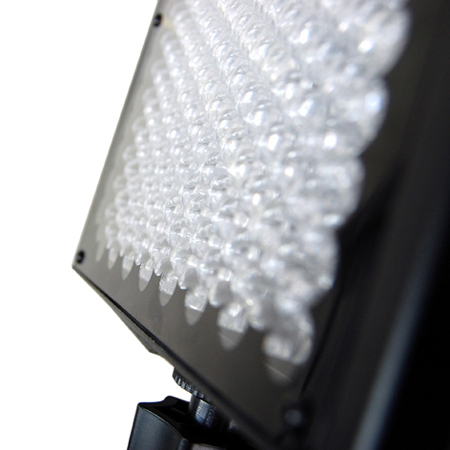

  • PC lens protection screen with egde-guide technology for better LED beam shaping
  • Passive, noise-free cooling (no fan)
  • Switch mode power supply with wide-range input
  • IEC 14 input with detachable power cord plus IEC 13 power output

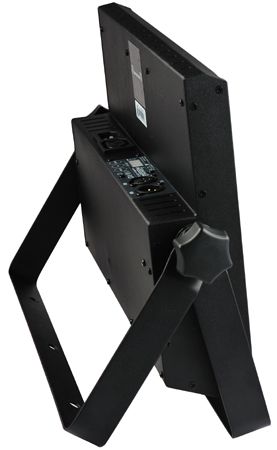

  • Angled connection panel for ultimate connection ease and compact shape
  • Convenient color-preset mode with 20 useful preset colors & color combinations
  • Useful Auto-Mode with 10 pattern presets in 3 different speeds (fade, slow fade, switch) plus
  • 4 strobe presets running across the three sections
  • Sound-to-light-Mode with 10 internal pattern presets
  • 4-channel DMX COMBINED mode (RGB brightness, dimmer/strobe for full unit)
  • 12-channel DMX mode (RGB levels, dimmer/strobe for each of the 3 sections)
  • 5/15-channel DMX modes optional (RGB brightness, dimmer, strobe – only on order)
  • All DMX modes with adjustable start channel
  • DMX SLAVE modes to easily connect several units to be controlled by the 1st unit in the chain
  • DMX REVERSE mode to allow “symmetrical” control of two units

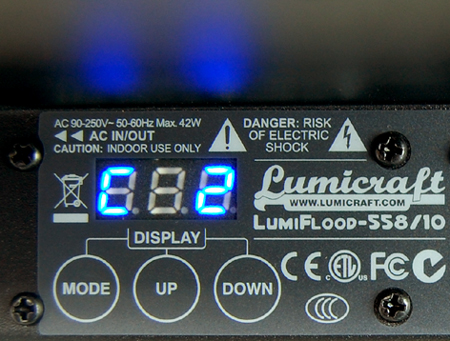

  • Blue 7-segment display (automatic display-off after 30 seconds)
  • Sheet metal body, black powder coated surface
  • Dual steel bracket with hook mount recess  for hanging and standing operation
  •  CE-compliant, ROHS compliant



SPECIFICATIONS

LEDs
Type: 10mm 1-chip 0.06W
Quantity: 558 pcs.
Distribution: 153 pcs. red, 261 pcs. green, 144 pcs. blue (in 3 sections)
Luminous output: 970 lm total
Optics: Primary, 30 degrees (20 or 40 degrees optional)

Power Supply
Input: 90-250V~ 50/60Hz
Power Cons.: max. 40W

Control Electronics
Dim Modulation: PWM
DMX Control: 4/12-channel (5/15-channel optional)

General
Size (WxDxH): 450x70x295mm
Weight: 3.95 kg net



OEM OPTIONS

The LumiFlood-558/10 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • 20 or 40 degrees dispersion angle
  • 5/15-Channel DMX mode
  • Rear Panel user interface printing
  • Packaging artwork
