LumiBar-252/10-3

The LumiBAR-252/10-3 wall washing bar is the perfect entry-level linear RGB color mixing fixture for wall-washing, backdrop illumination and cove lighting, serving a large variety of purposes in price-conscious entertainment and architectural lighting applications. The split LED panel allows to be operated either in 3 indidual sections or as one long bar, which makes this fixture unqiuely flexible.

FEATURES

  • LED panel with 252pcs. of ultra-bright 10mm 0.06W LEDs (63xRed, 108xGreen, 81xBlue)
  • Panel divided in 3 individually controlled sections of 84 LEDs (21xRed, 36xGreen, 27xBlue)
  • Dispersion angle 30 degrees (20 or 40 degrees optional – only on order)
  • Total luminous output 420lm with factory-calibrated white balance
  • Optical-grade PC LED panel cover
  • Passive, noise-free cooling (no fan)

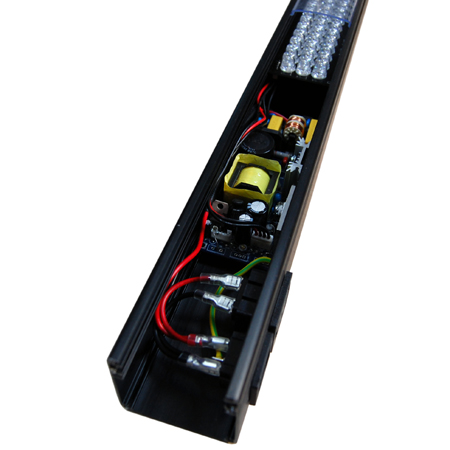

  • Switch mode power supply with wide-range input
  • IEC 14 input with detachable power cord plus IEC 13 power output
  • Convenient color-preset mode with 20 useful preset colors & color combinations
  • Useful Auto-Mode with 10 pattern presets in 3 different speeds (fade, slow fade, switch) plus
  • 4 strobe presets running across the three sections
  • Sound-to-light-Mode with 10 internal pattern presets
  • 4-channel DMX COMBINED mode (RGB brightness, dimmer/strobe for full unit)
  • 12-channel DMX mode (RGB levels, dimmer/strobe for each of the 3 sections)
  • 5/15-channel DMX modes optional (RGB brightness, dimmer, strobe – only on order)
  • All DMX modes with adjustable start channel
  • DMX SLAVE modes to easily connect several units to be controlled by the 1st unit in the chain
  • DMX REVERSE mode to allow “symmetrical” control of two units
  • Optionally available with infrared sensor for remote operation via IRC-1 remote control

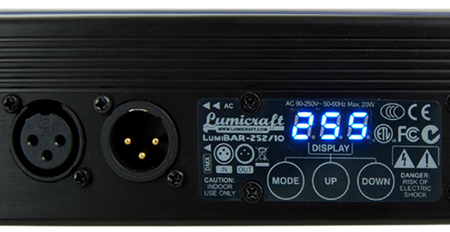

  • Blue 7-segment display (automatic display-off after 30 seconds)
  • Aluminum body, black anodized surface
  • Dual aluminum mounting brackets
  • CE-compliant, ROHS compliant



SPECIFICATIONS

LEDs

  • Type: 10mm 1-chip 0.06W
  • Quantity: 252 pcs.
  • Distribution: 63 red-108 green-81 blue
  • Panel sections: 3
  • LED per section: 21 red-36 green-27 blue
  • Luminous output: 420 lm total
  • Optics: Primary, 30 degrees (20° or 40° optional)

Power Supply

  • Input: 90-250V~ 50/60Hz
  • Power Cons.: max. 20W

Control Electronics

  • Dim Modulation: PWM
  • DMX Control: 4-channel, 12-channel (5/15-channel optional)

General

  • Dimension: L 1074x H 64x D 66mm (without brackets)
  • Weight: 1.93 kg net



OEM OPTIONS

The LumiBAR-252/10-3 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • 20° or 40° dispersion angle
  • 5/15-Channel DMX scheme
  • Body color: powder coating in any color available (surcharge and MOQ applies)
  • Side Panel user interface printing
  • Packaging artwork
