LumiPar-39/DW3

The Lumicraft LumiPAR-39/DW3 is a Highpower-LED fixture for the specific purpose of generating white light with adjustable color temparature. Further, the comprehensive strobe modes make this unit a powerful white strobe! The custom firmware makes proper settings a breeze, and the innovative connection panel plus the silent hybrid cooling system provide the required versatility and reliability.

FEATURES

  • LED panel with 39pcs. of ultra-bright 3W High-Power LEDs: 18x warm white, 21x cold white
  • Precision PMMA lenses with 30° dispersion angle in FOCENT™** Ring (40° lenses optional)
  • Total luminous output (all colors full level) 4250lm with factory-calibrated white balance
  • Silent hybrid cooling system (fan-assisted heatsink)
  • Wide-range switch mode power supply and CDA™** current drive array for LED panel
  • IEC C14 input with detachable power cord plus IEC C13 power output

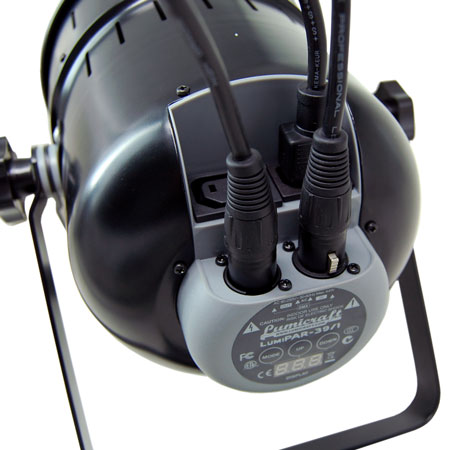

  • Patented angled connection panel* for ultimate connection ease and compact shape
  • Convenient color-temperature preset mode with 10 useful presets and stand-alone dimmer
  • Strobe-Mode with 10 internal speed levels
  • 5 different DMX modes, with separate channels or combined balance channel for cold/warm white, with and without strobe, and with combined or separate dimmer/strobe channels
  • DMX slave mode to easily connect several units to be controlled by the first unit in the chain

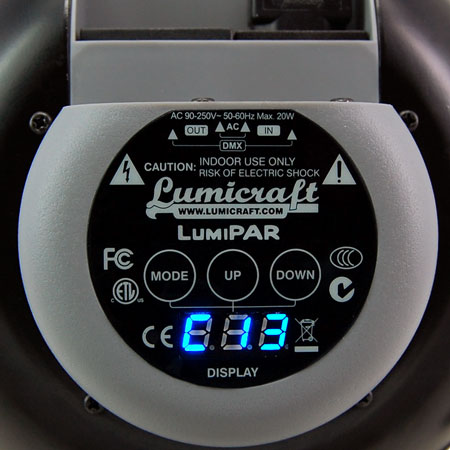

  • Blue 7-segment display (automatic display-off mode after 30 seconds)
  • Aluminum body, natural polished or black painted surface
  • Dual aluminium bracket with hook mounting recess for hanging and standing operation

* Protected by China design patent 200930081836.9, China utility patent 200920059834.4, Europe community design 001551508, US design patent pending, US utility patent pending



SPECIFICATIONS

LEDs

  • Type: 3W single-chip (700mA)
  • Quantity: 39 pcs.
  • Distribution: 18 warm white  – 21 cold white
  • Luminous output: 4250 lm total
  • Optics: Optical PMMA, 30° (40° optional)

Power Supply

  • Input: 90-250V~ 50/60Hz
  • Power Consumption: max. 95W

Control Electronics

  • Dim Modulation: PWM
  • DMX Control: 2/3/4-Channel (depending on settings)

General

  • Dimension: D195(edge)/D186 (tubus) x L252mm
  • Weight: 2.4 kg net



OEM OPTIONS

The LumiPAR-39/DW3 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • 5-channel DMX scheme with separate strobe and dimmer channels
  • 40° lens dispersion angle
  • Rear Panel user interface printing
  • Packaging artwork
